由多股光纖絲集束，經過連續套塑而成，用導光纜制作成單進多出的傳光束，能方便的改變光束分布狀態和形態，可以進行符號、數字、文字、圖像的顯示。信號穩定、準確、清晰控制簡單的特點。

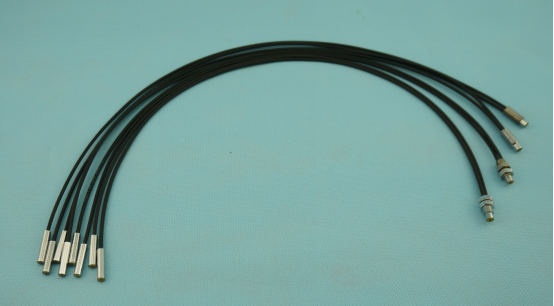

Glass fiber-optical cable
Bunched with multi-optic fiber, the product is completed after continual plastic shield prebalelling. It can be flexibly changed distribution and shape，can be converted into symbols, numbers, text, graphics.
導光纜性能 | 數值參數 |
數值孔徑 | 0.6 |
光纖絲徑/μｍ | 50 |
光纖損耗/dB?km | ≤420 |
光纖拉伸強度/kg?mm | 150 |
光束外徑/mm | 1.8;2.3;2.8 |
護套材料 | HYDTEL 556; PVC |
光纖束透過率/%.ｍ | >50 |
彎曲半徑 | >30D(D為光束外徑) |
介電強度/V?ｍ | ≥2.0×10 |
體積電阻率/Ωｍ | 10 |
